TVmap in Excel is a powerful, flexible module accessing TVmap data directly within Microsoft Excel*. Customised interactive worksheets can be built, which will automatically recalculate when new data is received.



Select the TVmap in Excel tile on the TVmap home screen.

Excel.Dashboard.Tile



Or select File > New > TVmap in Excel

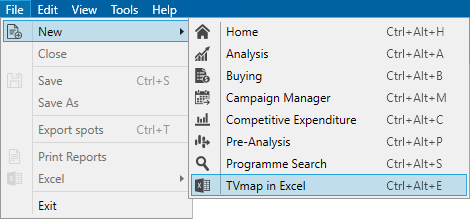

TVmapExcel.FileMenu





A list of standard templates will be displayed.

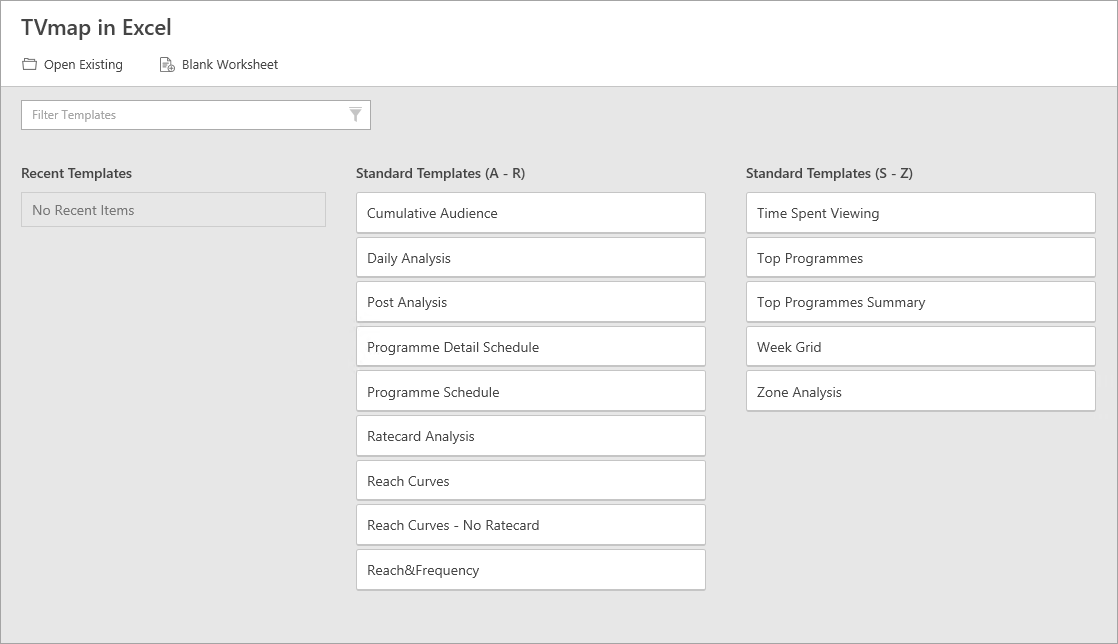

TVmapExcel.TemplateList



Hover the mouse over a template to display more information.

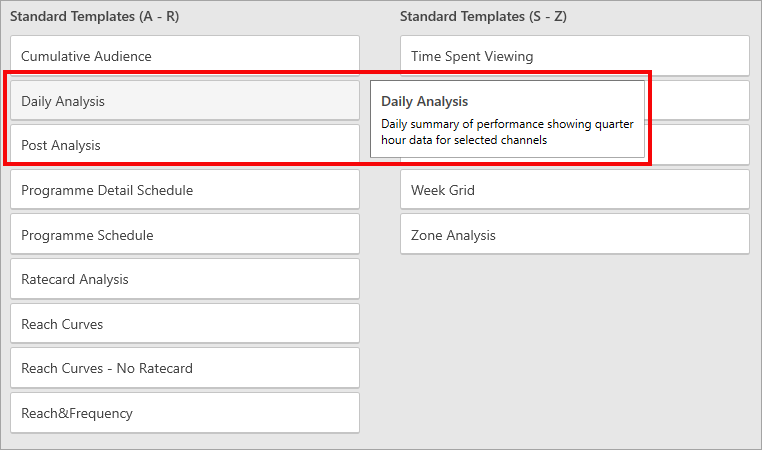

TVmap.Excel.Hover.Window





Opening Saved Templates

Use the Open Existing to re-open saved templates.

TVmap.Exce.Open.Existing



A template created in TVmap uses the TVmap functions connected to the TVmap database. If a TVmap worksheet is opened outside of TVmap a prompt for links will be displayed.  All links to TVmap functions will be invalid and the TVmap database will not be accessible.



To distribute a worksheet created through TVmap, all TVmap functions must be removed. All formulas need to be replaced with values, and a new copy created.





Export to Excel

To remove the TVmap functions from a template it needs to be exported to Excel.



Select TVmap from the Excel ribbon, then select Export to create a new copy of the current workbook.

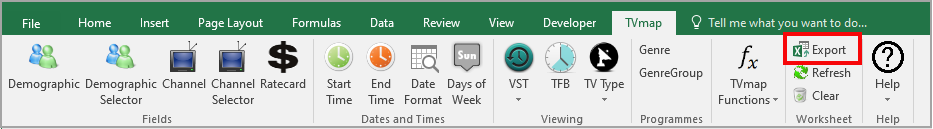

Excel.Export.Main



All links to TVmap functions will be removed, and replaced with the displayed values.  The exported workbook can be saved and opened by a non-TVmap user.

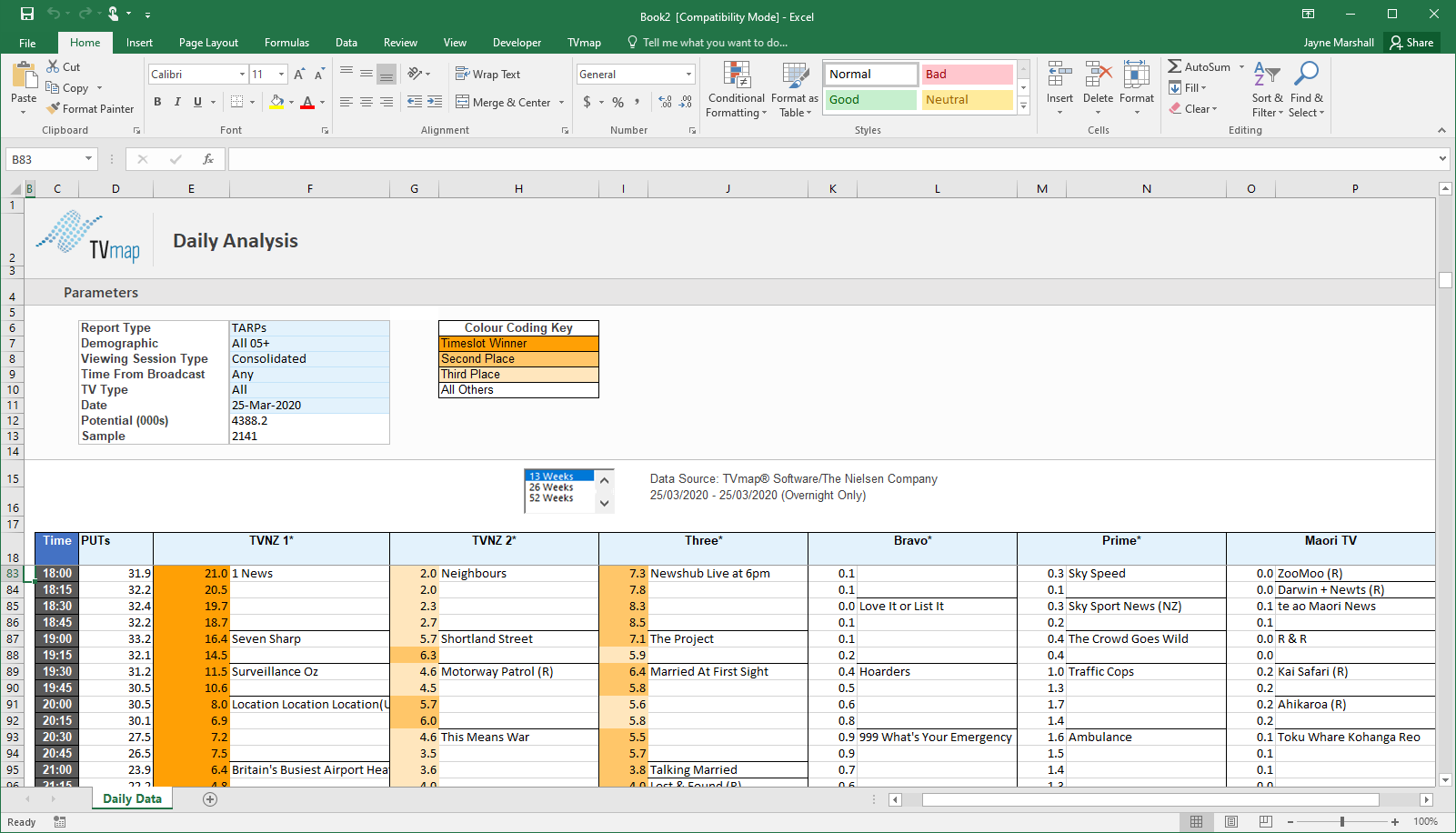

Excel.Static.Workbook





To modify a channel on a template see How to update a channel using the TVmap Tab.






* Excel® is a registered trademark of Microsoft Corporation
