Recommended TVmap Application Server Hardware Specifications

Item	Minimum	Recommended
Environment	Server can be shared with other applications. In this scenario, increased RAM is recommended.	Dedicated TVmap Application Server
Processor	Quad Core	Quad Core
Memory	8GB	16GB+
Operating System	Microsoft Windows Server 2016 (end of life January 2027)	Microsoft Windows Server 2022
Disk Space	200GB SSD is highly recommended and shows considerable improvement in performance however should you choose to remain with a mechanical hard drive then this will also work albeit not as well	200GB SSD
Static IP Address	A static public facing IP address is required so TVNZ & Warner Bros. Discovery can whitelist this in order to allow Electronic Bookings to get through their firewalls.

Recommended TVmap Database Server Specifications

Item	Minimum	Recommended
Environment	SQL and App server can be shared. In this scenario, increased RAM is recommended.	Dedicated TVmap Database Server
Processor	Quad Core	Quad Core or higher
Memory	8GB	16GB+
Operating System	Microsoft Windows Server 2016 (end of life January 2027)	Microsoft Windows Server 2022
SQL Version	Microsoft SQL Server 2016 Express (Freely available from Microsoft)	Microsoft SQL Server 2022 Standard Edition or higher
Disk Space	200GB A separate partition for SQL Log files is also recommended.	200GB Separate partition for SQL Log files

TVmap Application Server Software Requirements

Item

Supported Version

Microsoft .NET Framework

Version 4.8 or higher

Microsoft Excel

Microsoft Excel 2016 or higher

Office 365 - needs to be installed locally

SQL Server Management Studio

Any version that supports the TVmap SQL Database

Remote Access

Software to allow remote access for Deployments and Troubleshooting by Broadcast MAP staff

Public IP’s and Ports

Outbound TCP Traffic

Public IP	Ports
222.154.247.175	21, 22, 443, 560, 8000, 8010
202.37.242.26	80
122.56.24.10	80, 443
103.14.142.49	21, 22, 443, 560, 8000, 8010, 80
52.63.11.238	22
103.16.65.91 (for AS400)	9470-9476, 449 and 992 (AS400)

Internet Access

https://www.tvmap.net/
(and all sub pages)

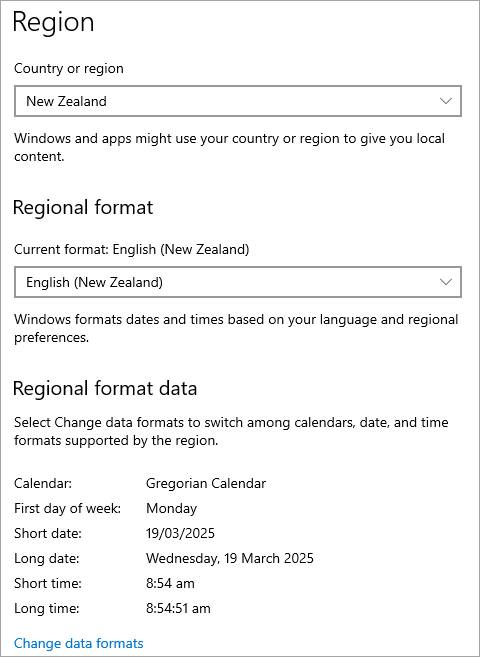

Regional Date Settings

TVmap requires that the Application Server is set to the appropriate regional date settings. Should be set to New Zealand region.

i.e. date format is set to dd/mm/yyyy.

If regional date settings are not set correctly, then issues can arise in the importation of files due to dates being misinterpreted.

NZ.Sys.Specs.Region.Settings

Recommended TVmap Client Specifications

Item

Minimum

Recommended

Processor

Intel i3 or AMD equivalent

Intel i5 + or AMD equivalent

Memory

8 GB

16 GB+

Operating System

Microsoft Windows 10

Microsoft Windows 11

Microsoft Excel

Microsoft Excel 2016

Microsoft Excel Office 365

Available Disk Space

10 GB

20 GB

Screen Resolution

Full HD (1920 x 1080)

Microsoft .NET Framework

Version 4.8

Version 4.8 or higher

Public IP’s and Ports

Outbound TCP Traffic

Public IP	Ports
202.37.242.26	80
122.56.24.10	80, 443
103.14.142.49	80, 443

Internet Access

https://www.tvmap.net/
(and all sub pages)

Regional Data Settings

TVmap requires that the Client PCs are set to the appropriate regional date settings.

i.e. date format is set to dd/mm/yyyy.

If regional date settings are not set correctly, then issues can arise in the importation of files due to dates being misinterpreted.

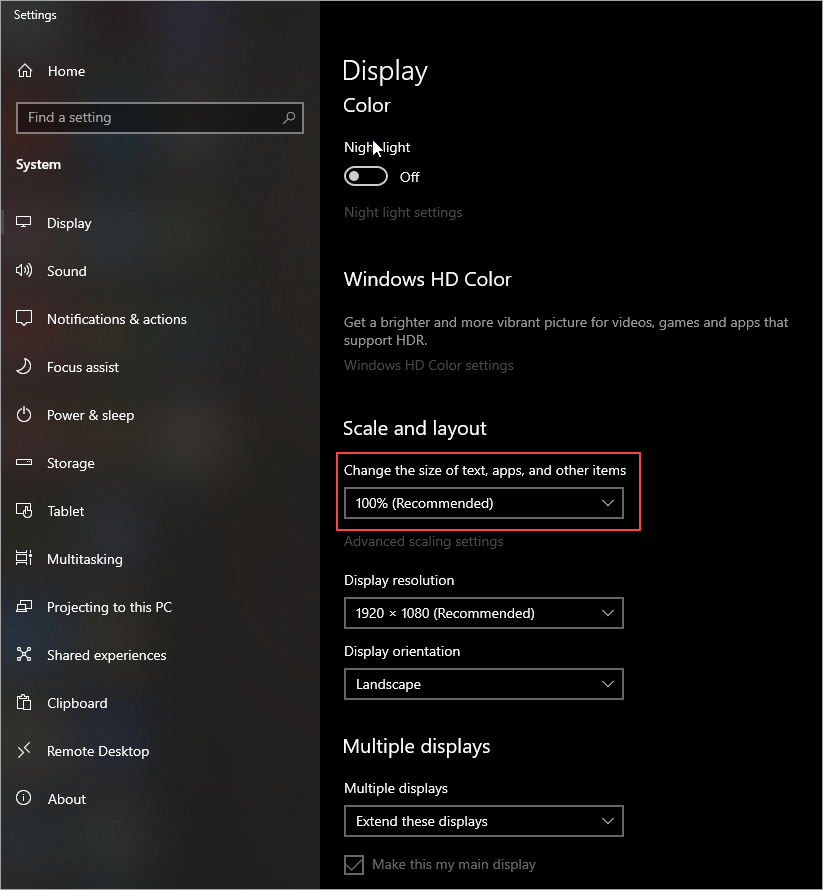

Text Size

The text size should be set to 100% (Recommended)

TVmap.System.Spec.Scaling

Please contact Broadcast M.A.P. Support to obtain the full Systems Specifications document.

Email: support@tvmap.com

New Zealand Office: +64-9-304-0762
